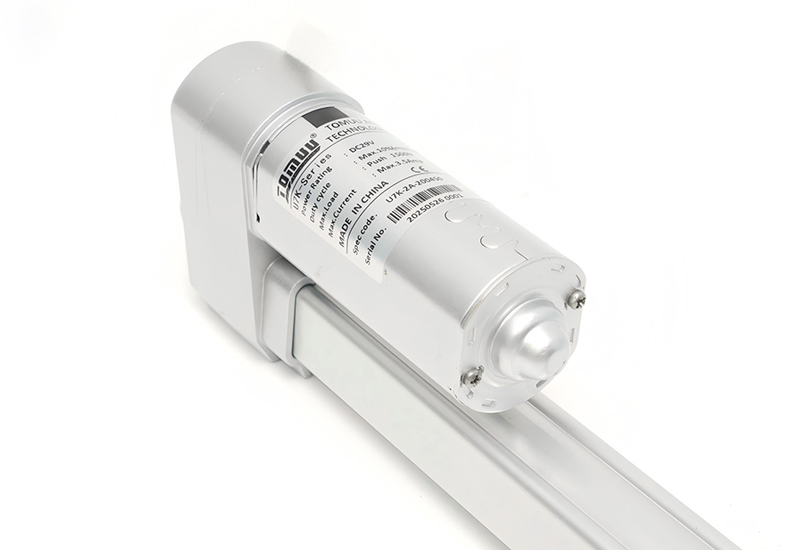

Linear Actuators U7

The U7 model small linear actuator is a small-sized industrial linear actuator, which is applicable for Christmas trees, vehicle trunks, and industrial appliances. Its longest stroke is more than 1m, and the smallest installation distance is 108mm + stroke. These linear actuators are small, waterproof and easy to install.

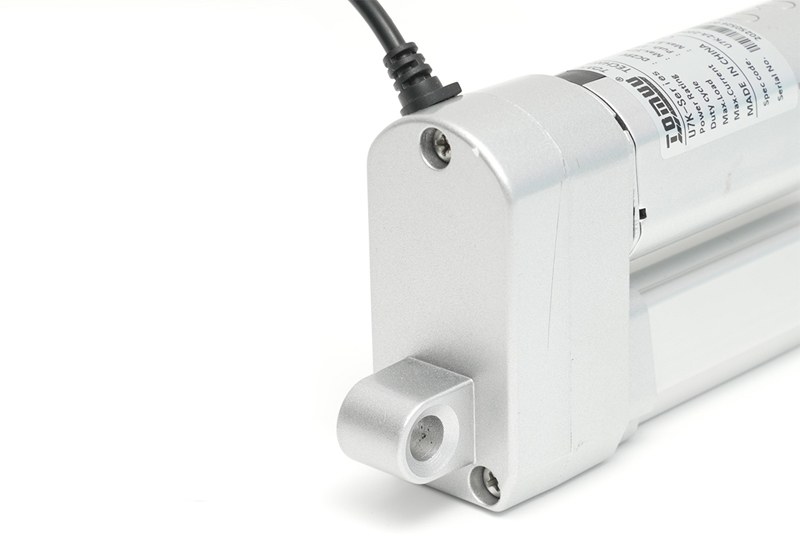

The inner tube, outer tube and gear box are made of aluminum alloy, and the gear is manufactured using a powder metallurgy process.

• Voltage: 12/24V DC
• Max load capacity: 2000N (push)
• No-load velocity: 5~60mm/s
• Full-load velocity: 4~45mm/s
• Duty cycle：25%
• Waterproof class：IP65
• Noise level: less than 65dB
• Temperature：-40℃ ~ +70℃

• The compact structure of this linear actuator ensures it is small and saves space.
• The shell features an outstanding corrosion resistance.
• This product is waterproof, dustproof, and has an excellent salt spray resistance, making the actuator ideal for harsh environments.
• It uses a metal gearbox and features a long service life.
• It is designed with a stable, durable structure.
• The linear actuator features a high positioning accuracy and short response time.
• It requires minimal maintenance and features a low energy consumption.
• This linear actuator is widely used in industrial automation equipment, electric window opener, sweeper, scissor lift platforms and other motorized equipment.

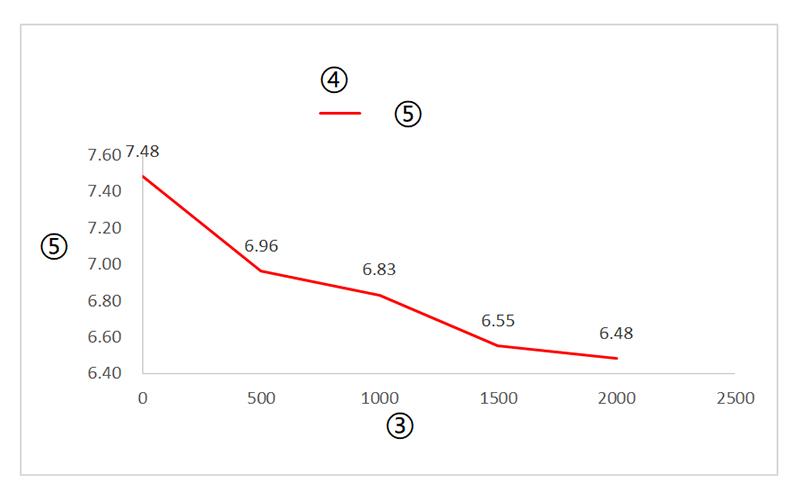

Curve graph

① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)

Comment: when the voltage change from 24V to 12V, the current will be doubled.

• voltage

  1=12V
  2=24V(standard)
  3=36V
  4=48V

• Connector

  1=Tined leads
  2= 01 Pin
  3=Din 6pin
  C=customization

• rear-end

  1=Φ6.4mm
  2=Φ8mm
  3=Φ10mm
  4=Φ6.4mm，slot 6mm
  5= Φ8mm，slot 6mm
  6=Φ10mm，slot6mm
  C=customization

• front-end

  1=holeΦ6.4mm
  2=holeΦ8mm
  3=clevis, slot 5.2mm, hole Φ6.4mm
  4=clevis, slot 4.2mm, hole Φ6.4mm
  5=clevis, slot 4.2mm, hole Φ8mm
  6=rod type, hole Φ6mm
  7=rod type, hole Φ8mm
  C=customization

• Orientation of Rear-End

  1=90°
  2=0°／180°

• signal feedback

  1=no signal
  2=analog signal from potentiometer
  3=pulse signal from single Hall sensor
  4=pulse signal from Dual Hall sensor

• Length of Cable

  1=straight wire,0.5m
  2=straight wire,1m
  3=straight wire,1.5m
  4=straight wire,2m
  5=straight wire,3m
  C=customization

• limit switch

  1=built-in limit switch off to stop
  2=built-in limit switches off to output signal, exterior switches off to stop
  3=built-in limit switches close to output signal, exterior switches off to stop
  C=customization
