Linear Actuators U6B

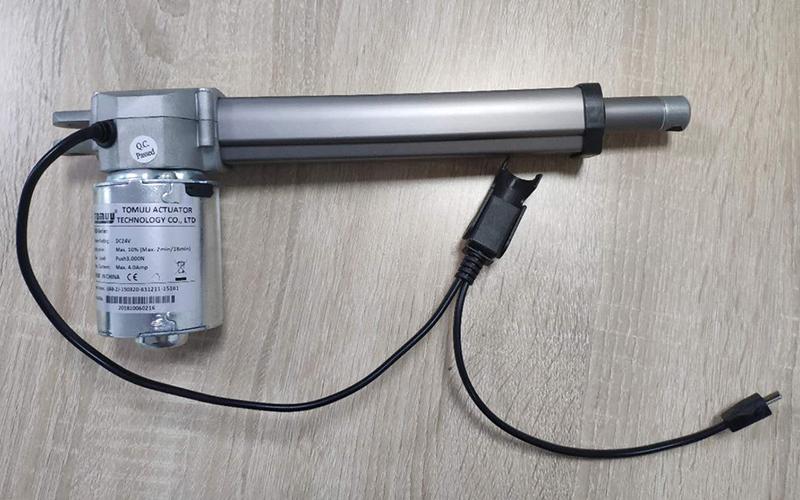

The U6B model mini linear actuator is a miniature version of the U6 model linear actuator, and is specially designed for electric sofas. Its gear box is made of a metal material and has a small stroke of less than 150mm. It features a low noise, and it is small and easy to install, which makes it ideal for lighter loads that are no more than 100kg.

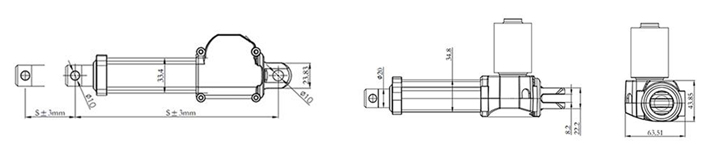

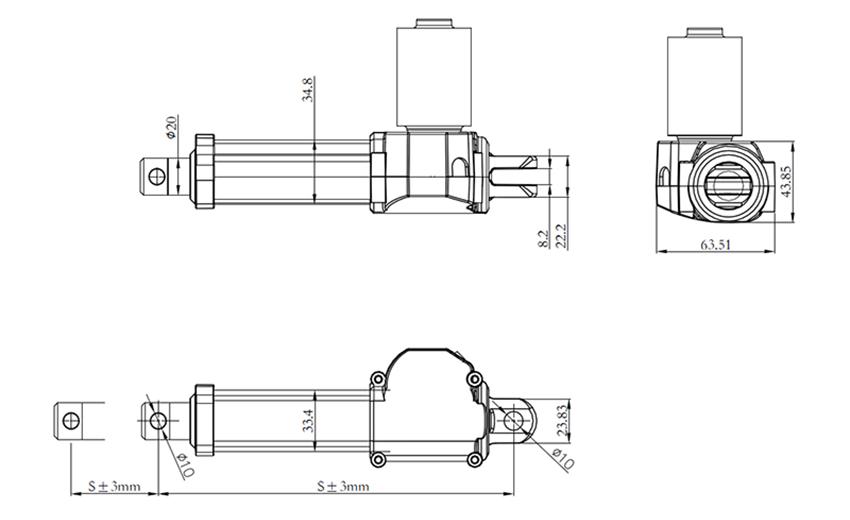

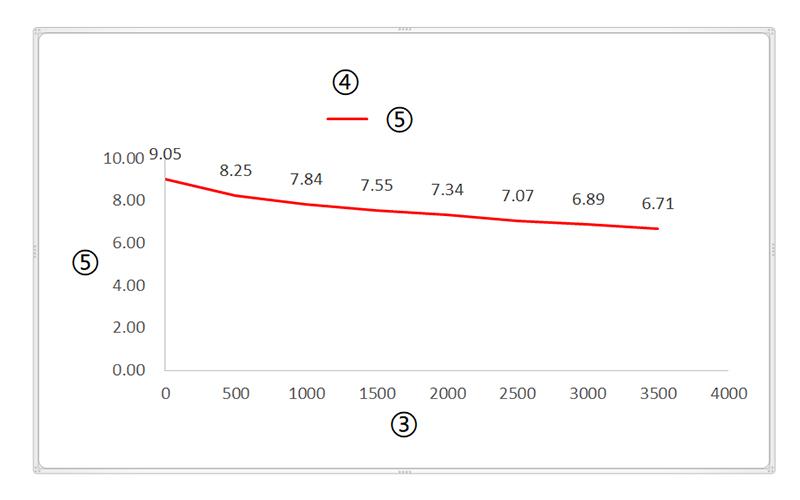

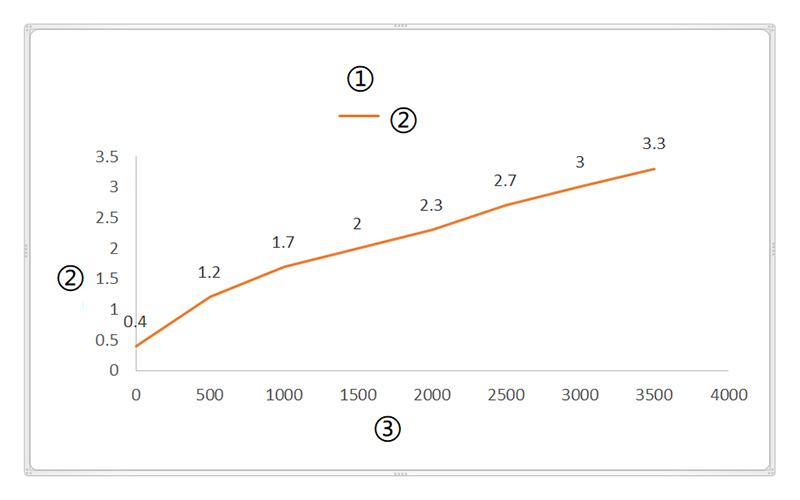

① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)

Comment: when the voltage changes from 24V to 12V, the current will be doubled.

• voltage

  1=12V
  2=24V(standard)

• color

  1=white
  2=Gunmetal grey

• Orientation of Rear-End

  1=0°／180°
  2=45°
  3=90°
  4=135°

• rear-end

  1=Width 6.2mm, hole Φ6.4mm
  2=Width 6.2mm, hole Φ8mm
  3=Width 6.2mm, hole Φ6.4mm(standard)
  4=Width 6.2mm, hole Φ10mm, tube Φ8mm

• front-end

  1=holeΦ6.4mm
  2 =holeΦ8mm
  3=clevis, slot 6mm, hole Φ6.4mm
  4=clevis, slot 6mm, hole Φ8mm
  5=clevis, slot 6mm, hole Φ10mm
  6=holeΦ10mm(standard)
  7=holeΦ10mm,tubeΦ8mm
  8=Width 32mm, hole Φ10.2mm with plastic cap

• limit switch

  1=Switches in both end off to stop(standard)
  2=Switches in both end off to output signal and a third one off to stop
  3=Switches in both end off to stop and a third one off to output signal
  4=Switches in both end off to output signal
  c=customization

• signal feedback

  1=no
  2=Single Hall Effect Sensors
  3=Dual Hall Effect Sensors
  c=Customization

• brake

  1=no
  2=One two-cycle torsional spring
  3=1.5m

• Length of Cable

  1=0.5m
  2=1m
  3=1.5m
  4=2m
  5=3m
  6=0.35m
  7=0.75m
  8=0.8m

• Connector

  1=Tined leads
  2=01pin(standard)
  3=Din 6pin
  4=Y cable 01pin, Din 5pin female(0.5m)
  5=V cable 01pin, Din 5pin female(0.35m)
  6=Din 5pin
  7=2pin VH-3.96MM
  8=110 terminal
  9=E cable, 01pin male，01pin female，5pin female
  A=Three trailers，01pin male，01pin female×2，5pin female


• Type of Cable

  1=straight
  2=coiled
