Linear Actuators U6

The U6 model home electric linear actuator is a small linear actuator, and is applicable for use in electric sofas, massage chairs and geezer chairs. The motors in this series of low noise electric actuators feature no shell, which prevents an increase in heat loss and ensures a longer service life. The maximum push force is 3500N, and the U6 linear actuators are made of an aluminum material that has undergone a surface anodic oxidation process to ensure the corrosion resistance. The back of the linear actuator can be adjusted to different angles according to installation requirements.

Advantages: low-noise, small-size, easy installation. Users can choose different installation specifications for front-end and rear-end.

The U6 is equipped with a universal power adapter and fashionable manual controller.

• Voltage: 12/24V DC
• Max load capacity: 3500N (push), 2000N(pull)
• No-load velocity:5.8~26.4mm/s
• Full-load velocity:2.8~10.8mm/s

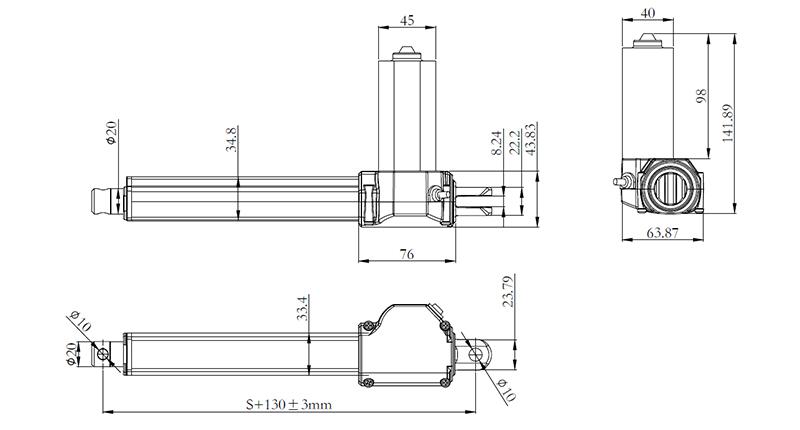

• Minimum installation distance: s + 163mm
• Noise level: less than 52dB
• Option: Hall sensor

• The linear actuator features a small size, large maximum load capacity, low weight, low noise and excellent self-locking performance.
• It is equipped with a built-in limit switch. The motor will automatically turn off at the end of each stroke.
• The linear actuator uses a metal gearbox and has a long service life.
• This product is designed with a strong and durable structure.
• It carries out a variety of functions, including lift, drop, tilt, and rotate.
• A manual controller and power source is optional.
• This linear actuator is widely used in elevating tea tables, electric massage sofas, electric beds, smart lounge chairs and other motorized furniture.

Curve graph

① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)

Comment: when the voltage changes from 24V to 12V, the current will be doubled.

• voltage

  1=12V
  2=24V(standard)

• Type of Cable

  1=straight
  2=coiled

• Orientation of Rear-End

  1=0/180°
  2=45°
  3=90°
  4=135°

• rear-end

  1=slot 6.2mm, hole Φ6.4mm
  2=slot 6.2mm, hole Φ8mm
  3=slot 6.2mm, hole Φ10mm
  C=customization

• color

  1=black
  2=sand-blast
  C=customization

• Protection Class

  1=IP42
  2=IP54
  3=IP65
  4=IP66

• Brake

  1=no
  3=One four-and-a-half-cycle torsional spring
  2=One three-cycle torsional spring
  4=motor brake

• limit switch

  1=Switches in both end off to stop
  2=Switches in both end off to output signal
  3=Switches in both end off to stop and a third one off to output signal
  4=Switches in both end and a third one off to output signal C=customization

• signal feedback

  1=no
  2=single Hall sensor
  3=Dual Hall sensor
  4=customization

• Connector

  1=Tined leads
  2= 01 Pin
  3=Din 6pin
  C=customization

• Length of Cable

  1=0.5M
  2=1M
  3=1.5M
  4=2M
  5=3M
  C=customization

• front-end

  1=hole Φ6.4mm
  2=hole Φ8mm
  3=clevis, slot 6mm, hole Φ6.4mm
  4=clevis, slot 6mm, hole Φ8mm
  5=clevis, slot 6mm, hole Φ10mm
  C=customization
