Linear Actuators U5

The U5 model motorized linear actuator is a slipper type linear actuator, which saves space and is easy to install. It is a motorized linear actuator, applicable for massage chairs, electric sofas, electric beds, and smart furniture. It is made of an aluminum alloy, and the slider and gear box are made using a plastic material that produces very little noise during operation. The maximum push force reaches up to 6,000N.

The slipper type linear actuator is easily installed with a stroke that is less than the length of the actuator body, which makes it ideal for use in electric furniture.

The U5 motorized linear actuator is equipped with a universal power adapter and fashionable manual controller.

• Voltage: 12/24V DC
• Max load capacity: 6000N (push), 3000N (pull)
• No-load velocity: 5.4~58mm/s
• Full-load velocity: 2.9~30mm/s
• Noise level: less than 52dB

• The linear actuator features a large maximum load capacity, a high speed, a high positioning accuracy, and an excellent self-locking performance.
• It is equipped with a built-in limit switch. The motor will automatically turn off at the end of each stroke.
• It features a small size, large maximum load capacity, and low weight.
• This product is designed with a strong and durable structure.
• It carries out a variety of functions, including lift, drop, tilt, and rotate.
• A manual controller and power source is optional.
• This linear actuator is widely used in electric massage sofas, electric beds, massage chairs and other electric or motorized furniture.

Curve graph

① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)

Comment: when the voltage changes from 24V to 12V, the current will be doubled.

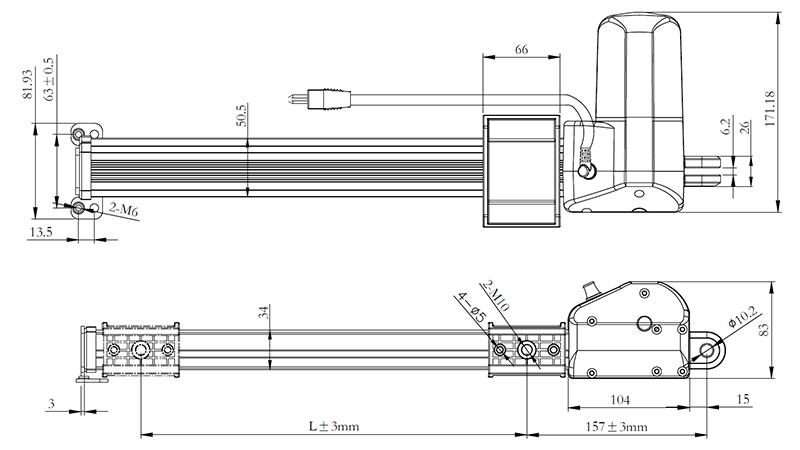

• voltage

  1=12V
  2=24V(standard)

• rear-end

  1=Plastic clevis, slot 6.2mm, hole Φ10.2mm
  C=Customization

• front-end

  1=no
  2=L type dead plate
  C=Customization

• Type of Cable

  1=straight
  2=coiled

• Length of Cable

  1=0.5m
  2=1m
  3=1.5m
  4=2m
  5=3m
  C=Customization

• limit switch

  1=Switches in both end off to stop
  2=Switches in both end off to stop and a third one off to output signal
  3=Switches in both end off to output signal
  4=Both end and a third one for signal output
  C=Customization

• Connector

  1=Tined leads
  2=01 pin
  3=Y cable( 01pin, Din 5 pin)
  C=Customization

• Brake

  1=no
  3=One four-and-a-half-cycle torsional spring
  2=One three-cycle torsional spring
  4=motor brake
