Linear Actuators U4

Linear actuators for solar systems

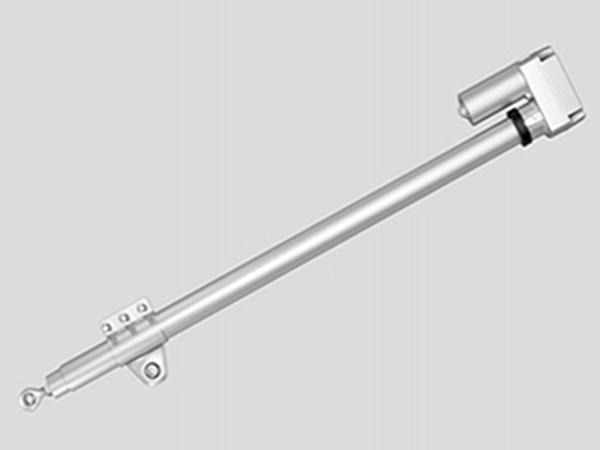

The U4 model DC linear actuator is specially designed for solar tracking systems. In order to make it applicable to severe environments, the shell is made of an aluminum alloy, and the interior is made of stainless steel, thus ensuring the linear actuator features an excellent corrosion resistance. To ensure the waterproof performance, a sealing ring is used in motor installation, especially around the bolts. Due to a heavy load capacity, the helical gear is manufactured using a powder metallurgy process. The dynamic load reaches up to 8000N, and the maximum static load reaches up to 20000N, allowing it to hold more than 25 solar panels and racking systems. Signal feedback is most often achieved using a reed sensor in the U4 model linear actuator.

• Voltage: 12/24V DC
• Max Dynamic load：8000N
• Max static load：20000N
• No-load velocity: 2.7mm/s
• Full-load velocity: 1~1.5mm/s
• Duty ratio：10%
• Waterproof class：IP65
• Ambient temperature：-25℃ ~ +65℃
• Signal feedback：magnetic loop sensor
• Option: Hall sensor

• The linear actuator is suitable for small and medium scale solar photovoltaic systems.
• The shell features an outstanding corrosion resistance.
• This product is waterproof, dustproof, and has an excellent resistance to salt spray, making it ideal for use in harsh environments.
• It uses a metal gearbox and features a long service life.
• This linear actuator is designed with a stable, durable structure.
• It requires minimal maintenance and features a low energy consumption.
• The linear actuator features a self-locking function and is easy to install.

Curve graph

① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)

Comment: when the voltage changes from 24V to 12V, the current will be doubled.

• voltage

  1=12V
  2=24V
  3=36V
  4=48V

• front-end

  1=Rod type,Φ13mm
  2 =Rod type,Φ16mm
  3=Rod type,Φ20mm
  C=Customization

• installation

  1=Handle on tube, Φ12.7mm
  2=Trunnion on tube
  3=front-rear
  C=Customization

• signal feedback

  1=no
  2=Hall sensor
  3=reed sensor
  C=Customization

• Connector

  1= Tined leads
  2=Din 5 pin
  3=aviation plug
  C=Customization

• Length of Cable

  1=1m
  2=1.5 m
  3=2m
  4=3m
  C=Customization
