Linear Actuators U10P

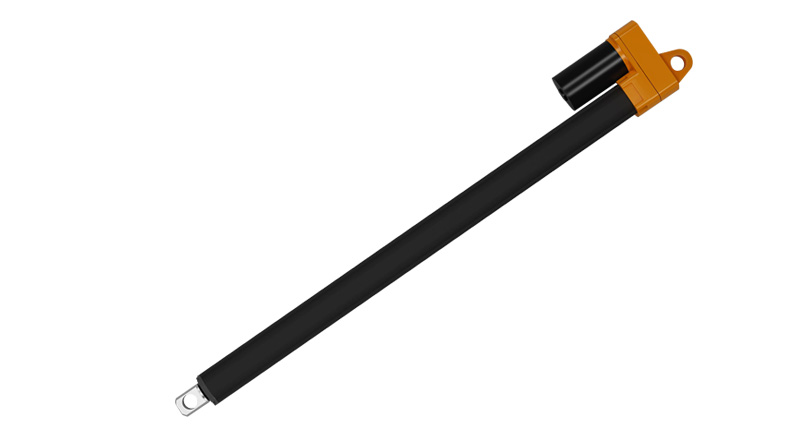

Linear Track Actuator

The U10P heavy duty linear actuator is an updated version of the U10 model linear actuator. The inner screw and motor have both been improved in order to obtain a more dynamic load of up to 3,000kg, making it applicable for extremely large solar tracking racking systems.

Parameters
  • Voltage: 12/24/36/48V DC
  • Max dynamic load: 30000N
  • Max static load: 50000N
  • No-load velocity: 1.5mm/s
  • Full-load velocity: 1.2mm/s
  • Duty cycle：10%
  • Waterproof class：IP65
  • Temperature：-25℃ ~ +65℃
  • Optional: Hall sensor

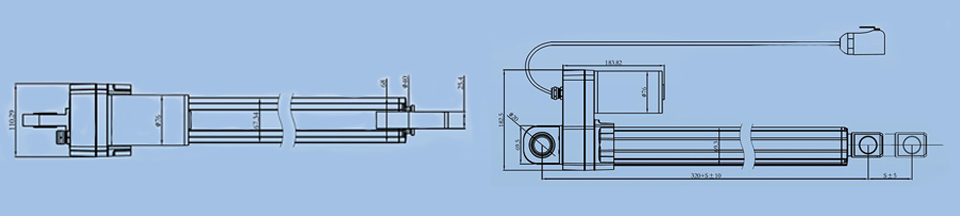

Appearance and size
Appearance and size

Curve graph

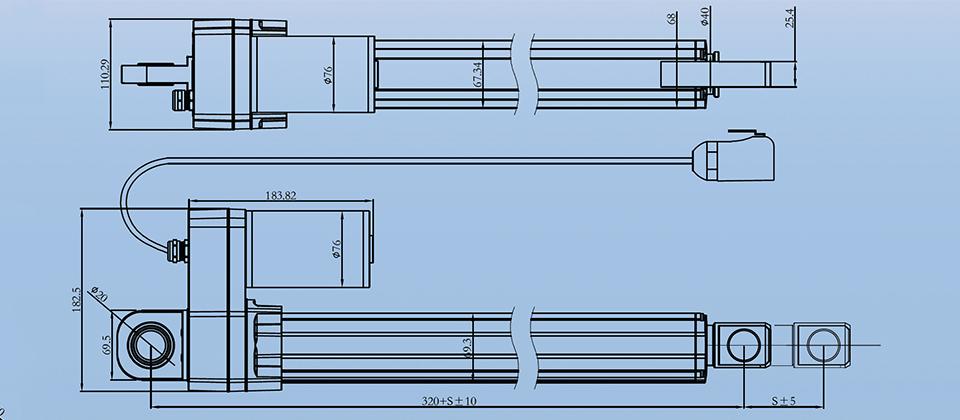

Appearance and size Appearance and size

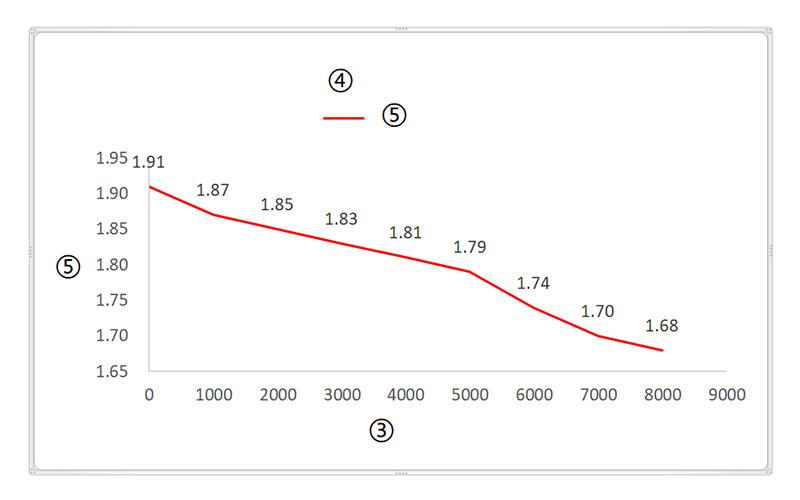

① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)

Code of Parameters
code Rated laod（N） Rated current（A） Rated speed（mm/s）
Push Pull No-load(24VDC) Full-load(24VDC)
A 30000 30000 9 1.5 1.2
B 25000 25000 8 1.5 1.4

Comment: when the voltage changes from 24V to 12V, the current will be doubled.

Customization parameter

  • voltage

    1=12V
    2=24V(standard)
    3=36V
    4=48V

  • front-end

    1=holeΦ20mm
    2 =holeΦ30mm
    3=rod typeΦ20mm
    4=rod typeΦ30mm
    C=customization

  • Protection Class

    1=IP54
    2=IP65(standard)
    3=IP66
    C=customization

  • rear-end

    1=no
    2=holeΦ20mm
    3=holeΦ30mm
    4=rod type,Φ20mm
    5=rod type,Φ30mm
    C=customization

  • installation

    1=front-rear
    C=customization

  • signal feedback

    1=no
    2=Hall sensor
    C=customization

  • Connector

    1=Tined leads
    2=Din 5 pin male
    3=Delphi pin
    C=customization

  • Length of Cable

    1=1m
    2=1.5 m
    3=2m
    4=3m
    C=customization
Other linear actuator

Our motion control products are used in many industries, and for these various industries there are different requirements regarding the motion control system. To meet the requirements, we set 9 parameters in the customization of the electric actuators. We will produce the individual motion control products according to your defined parameters. In the customization process, we have professional staff members who will contact you. All you need to provide is the simplest answer of what you need, and we will get to work creating the most suitable design and will send out a sample as quickly as possible. Even if you don’t have a clear plan for your product, you can contact us and we will provide professional consultation.
