Linear Actuators U8

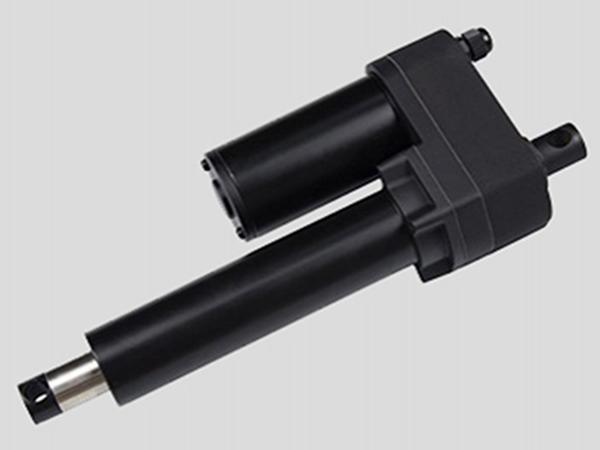

The U8 model industrial linear actuator is a heavy duty linear actuator with a metal shell and a stainless steel built in tube. Its maximum load capacity is 1T, and features a waterproof protection grade of IP65, which makes it ideal for use in harsh environments.

Sealing rings are used in installation, and are surrounded by rubber materials to ensure an excellent waterproof performance and meet the requirements for outdoor environments.

These linear actuators differ from plastic linear actuators, as the front and rear end installation points are made of metal material. This makes them ideal for use in industrial environments.

These industrial linear actuators are equipped with a plug to connect to a cable and small-sized adapter. Users can choose different cable sizes based on their requirements.

• Voltage: 12/24/36/48V DC
• Max load capacity: 8000N (push), 8000N (pull)
• No-load velocity: 2.5~50mm/s
• Full-load velocity: 3.5~70mm/s
• Duty cycle：25%
• Waterproof class：IP65
• Temperature：-40℃ ~ +65℃
• Option: Potentiometer or Hall sensor

• The linear actuator features a large maximum load capacity, high speed, and high positioning accuracy.
• Its shell features an excellent corrosion resistance.
• This product is waterproof, dustproof, and has an excellent resistance to salt spray, making it ideal for use in harsh environments.
• It uses a metal gearbox and features a long service life.
• The linear actuator is designed with a strong and durable structure.
• It supports a variety of front-rear installation methods for customers to choose from.
• A hall sensor and potentiometer is optional.

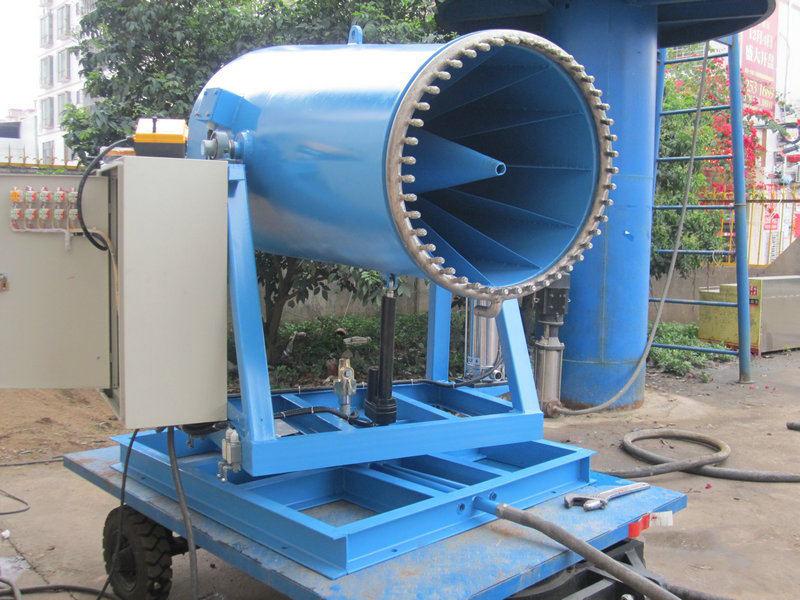

• This product is suitable for industrial machinery and equipment.

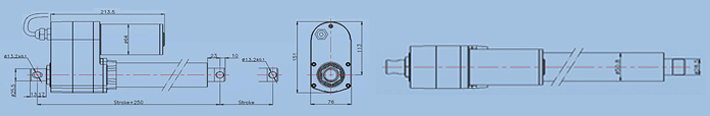

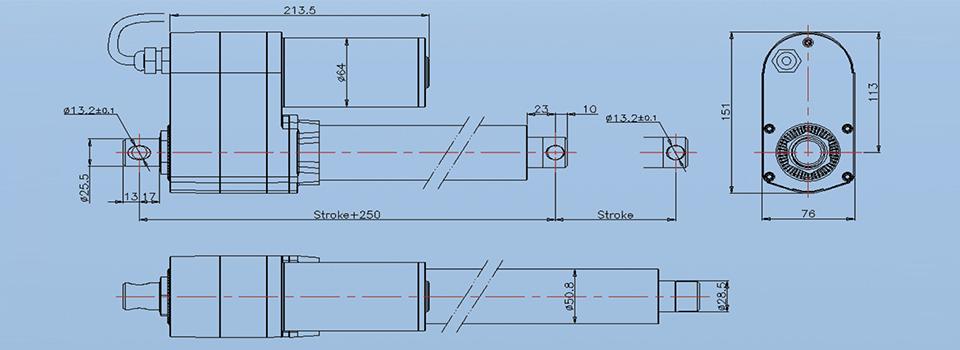

Curve graph

① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)

Comment: when the voltage changes from 24V to 12V, the current will be doubled.

• voltage

  1=12V
  2=24V(standard)
  3=36V
  4=48V

• Orientation of Rear-End

  1=90°
  2=0°/180°
  3=30°
  4=60°

• rear-end

  1=hole Φ13.2mm
  2=hole Φ15.2mm
  3=hole Φ16.2mm
  4=clevis, slot 8.2mm, hole Φ13.2mm
  5=hole Φ14mm, width 20mm
  6=screw M16*1.5-20L
  C=customization

• front-end

  1=holeΦ13.2mm
  2=hole15.2mm
  3=holeΦ16.2mm
  4=clevis, slot 8.2mm, hole Φ13.2mm
  5=screw M16*1.5-20L
  6=rod type Φ16mm
  7=rod type Φ20mm
  C=customization

• Length of Cable

  1=0.5M 2=1M
  3=1.5M
  4=2M
  5=3M
  C=customization

• limit switch

  1=Switches in both end off to stop 2=Switches in both end off to output signal
  3=Switches in both end off to stop and a third one off to output signal
  4=Switches in both end and a third one off to output signal C=customization

• Connector

  1=Tined leads
  2= 01 Pin
  3=Din 6pin
  C=customization

• signal feedback

  1=no
  2=single Hall sensor
  3=Dual Hall sensor
  4=reed sensor

• Type of Cable

  1=straight
  2=coiled
